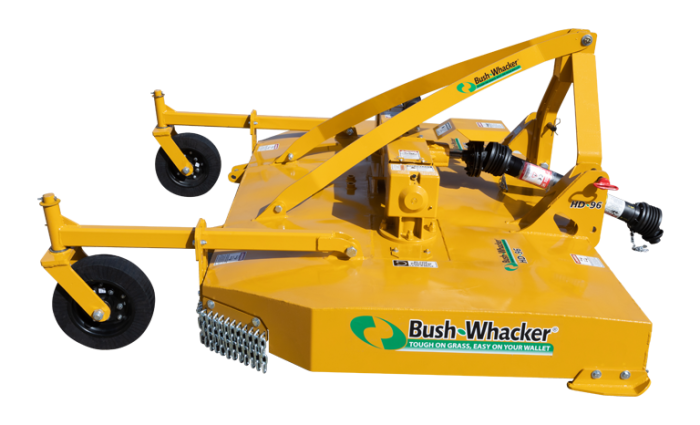

Heavy Duty HD-96P
Bush-Whacker mowers are increasing in demand for agricultural, commercial, and other applications where a heavy-duty, rugged mower is needed. Bush-Whackers are available in a range of sizes to fit your needs from the five-foot model all the way to the 20-foot model.
FIND A DEALER
- 540(Standard)
- 120 HP main or transfer box
- 100 HP outboard boxes
- Gearboxes have forged alloy steel malleable housings, carburized and
hardened gears and shafts, tapered and ball bearings.
Slip Clutch:
Heavy-Duty clutch
Spring type adjustment
Four friction discs on main shaft
Outboard protection by means of shock absorbing rubber elements connected to splined yokes which form a coupler.
Blades:
½” x 4” material
Alloy spring steel
Airlift design
Free-swinging when encountering obstructions
4-inch overlap
Blade tip speed: 15,480 FPM
Drive Shafts:
Category 4 main input and side drives
Category 4 80-degree constant velocity main drive shaft optional for pull model
Shielded PTO’s made from the finest quality propeller shaft material and needle bearing universal joins
Wheels:
Two solid rubber grooved tires standard
Independent shock absorbing system for rear suspension
Optional: aircraft tires or implement tires, dual axle arms (4 tires total).
Bush-Whacker Special Deck:
10-gauge skin
¼” sides
Heavy duty T-frame design with one-piece electric welded frame
Hydraulic Adjustments:
Hydraulic cylinder controls cutting and traveling hei\ght adjustments for pull models
Dimensions:
Cutting Width: 96”
Cutting Height: 2” to 12”
Overall Width: 105”
Overall Length: 91”
Transportation width: 105”
Weight:
2,200 lbs. (lift)
2,500 lbs. (Pull)
Chain Guards:
Standard
Other Standard Features:
Replaceable skid shoes
Quick release guards for easy inspection and maintenance
For pull model:
- Heavy-duty tongue assembly
- Hydraulic hose holder
- Jack for easy hookup and unhooking from tractor
- 10 Gauge Deck
- Gearboxes are mounted to ½” plates that are welded to the ½” frame rails.
- 4-bolt mounting on gearboxes
- Heads are tack-welded to bottom of deck so one person can tighten the nuts or change the gearbox.
- Blades are ½” by 4’ instead of traditional ½” by 3 ½”
Comparison brush Cutters
| Brand | Bush-Whacker |
|---|---|
| Model | HD-96 |
| Cut Width | 96″ |
| Overall Width | 105″ (lift and pull) |
| HP Required (Min.) | 45 HP (lift); 35 HP (pull) |
| Gearbox Rating – Power Divider | 120 HP; 100HP |
| Gearbox Rating – Center & Wing | – |
| Blade Tip Speed – Center | 15,480 FPM (540 RFM) |
| Cutting Capacity (Max.) | 3″ |
| Driveline Size – Main | Cat 4 |
| Cross Shaft | Rubber Disc |
| Tire & Wheels | Groved Laminated |
| Cutting Height | 2-12″ |
| Hitch | Cat 1 and 2. QH |
| Tongue Weight | 900 LBS |
| Total Weight | 2200 lbs (Lift), 2400 (pull) |
| SIDE Band | 1/4″ |
| Blades | 1/2″ x 4″ updraft |
| Blade Holder | Round-small |
| Gearbox Warranty | 5 Years |
| Deck Height | – |
| Deck | 10 gauge |
| Blade Overlap | 4″ |
| Stump Jumper Size | 7 gauge |
| Leveling Rods | 2 on pull type |
| Overall Length | 91″ (Lift) |
| Driveline Protection | Slip Clutch |
| Chains | Single Chains |
| Transport Width | 105″ |
Hall Manufacturing provides a limited warranty of one year on any machine or component, and five years on any mechanical gearbox or gearbox component.
This warranty covers defective materials and workmanship on the complete machine. Limitations and exclusions apply.
